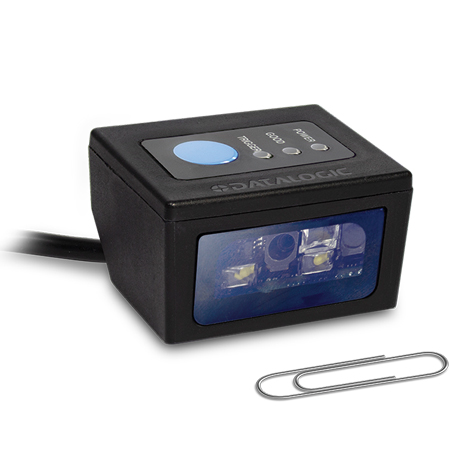

datalogic得利捷DSM04XX固定式扫描器

DSM0421

DSM0400, 2D, WVGA, USB

DSM0422-DL

DSM0400, 2D, MP-DL, USB

DSM0452-DL

DSM0400, 2D, MP-DL, RS-232

DSM0492-DL

DSM0400, 2D, MP-DL, RJ-45

DSM0422-WA

DSM0400, 2D, MP-WA, USB

DSM0452-WA

DSM0400, 2D, MP-WA, RS-232

DSM0492-WA

DSM0400, 2D, MP-WA, RJ-45

DECODING CAPABILITY

1D / Linear Codes

All standard 1D codes including: UPC/EAN/JAN, P2 / P5 add-ons;

Code 39; Italian Pharmacode 39; Code 128; C128 ISBT; I 2 of 5; Standard 2 of 5; Interleaved 2 of 5;

Industrial 2of 5; Datalogic 2of5; IATA; Code 11; Codabar;

ABC Codabar; EAN 128; Code 93; MSI/Plessey; RSS-14;

BC412; Databar Limited; Databar Omnidirectional;

Databar Expanded; IATA; Trioptic; Matrix 2/5;

Telepen. Composite codes CC-A, CC-B and CC-C

2D Codes

Aztec Code; China Han Xin Code; Data Matrix; MaxiCode;Micro QR Code; QR Code

Postal Codes

Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal
Mail Code (RM4SCC)

Stacked Codes

EAN/JAN Composites; GS1 DataBar Composites; GS1;DataBar Expanded Stacked; GS1 DataBar Stacked;GS1 DataBar Stacked Omnidirectional; MacroPDF;MicroPDF417; PDF417; UPC A/E Composites

ELECTRICAL

Input Voltage

5 VDC ± 5%

Current: DSM0421
USB Connected

Operating (Typical): ≈ 214 mA**
Standby/Idle (Typical): ≈ 57 mA*
Low Power: ≈ 3.9 mA

Current: DSM0422 /
DSM0492 USB Connected

Operating (Typical): ≈ 214 mA**
Standby/Idle (Typical): ≈ 55 mA*
Low Power: ≈ 5 mA

Current: DSM0452 /
DSM0492 RS-232 Connected

Operating (Typical): ≈ 246 mA**
Standby/Idle (Typical): ≈ 50 mA*
Low Power: ≈ 9 mA

**If “power” and “trigger” status LED are enabled add 30 mA
* If “power” status LED is enabled add 15 mA

ENVIRONMENTAL

Ambient Light

0 - 100,000 lux

Humidity (Non-condensing)

5 - 95%

Drop Resistance

Withstands repeated drops from 3 ft onto a concrete surface.

Particulate and Water
Sealing

IP54

Temperature

Operating: -20 to 50°C / -4 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F

INTERFACES

Interfaces

USB: HID-KBD, COM, OEM& Composite (KBD & COM);RS-232

PHYSICAL CHARACTERISTICS

Colors Available

Black

Dimensions

4.7 x 2.7 x 3.8 cm / 1.85 x 1.06 x 1.50 in

Weight (with cable)

USB version - Approximately 131 g / 4.62 oz
RS-232 version – Approximately 155 g / 5.47 oz
RJ-45 version – Approximately 96 g / 3.39 oz

READING PERFORMANCE

Imager Sensor

WVGA: 752 x 480 pixels
MP: 1280 x 960 pixels

Light Source

Aiming: 650 nm VLD Illumination: White LEDs

Field of View

DSM0421: 40°H x 26°V
DSM04X2-DL: 42°H x 32°V
DSM04X2-WA: 52°H x 40°V

Reading Angle

Pitch: +/- 60°; Roll (Tilt): +/-180°; Skew (Yaw): +/- 60°

Reading Indicators

Beeper (Adjustable volume); Good Read Feedback:
Datalogic ‘Green Spot’ Technology; Good read top LED.

Resolution (Maximum)

1D Linear: 2.5 mils (DSM04X2) – 3.0 mil (DSM0421)
Data Matrix: 6 mils (DSM04X2) - 7.5 mils (DSM0421)
PDF417: 3 mils (DSM04X2) - 6.6 mils (DSM0421)

Print Contrast (Minimum)

25%

Image Capture

Greyscale: 256; Graphic Formats: BMP, JPEG

READING RANGES

Typical Depth of Field

Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.

1D/2D Codes: DSM0421

3 mils Code 39: 8.0 to 17.5 cm / 3.1 to 6.9 in
5 mils Code 39: 5.5 to 26.0 cm / 2.1 to 10.2 in
13 mils EAN-13: 4.5 to 42.0 cm / 1.8 to 16.5 in
20 mils Code 39: up to 59.0 cm / up to 23.2 in
15 mils Data Matrix: 3.5 to 26.5 cm / 1.4 to 10.4 in
10 mils PDF417: up to 20.0 cm / up to 7.9 in

1D/2D Codes: DSM04X2-DL

3 mils Code 39: 6.5 to 20.0 cm / 2.5 to 7.8 in
5 mils Code 39: 3.5 to 29.0 cm / 1.3 to 11.4 in
10 mils Data Matrix: 7.5 to 26.0 cm / 2.9 to 10.2 in
13 mils EAN-13: 4.5 to 42.0 cm / 1.7 to 16.5 in
15 mils Data Matrix: 5.5 to 32.0 cm / 2.1 to 12.5 in 20 mils
Code 39: up to 60.0 cm / up to 23.6 in

1D/2D Codes: DSM04X2-WA

3 mils Code 39: 5.0 to 18.0 cm / 2.0 to 7.1 in
5 mils Code 39: 3.0 to 24.0 cm / 1.2 to 9.4 in
10 mils Data Matrix: 4.0 to 20.0 cm / 1.6 to 7.9 in
13 mils EAN-13: 3.5 to 37.0 cm / 1.4 to 14.6 in
15 mils Data Matrix: 3.0 to 25.0 cm / 1.2 to 9.8 in
20 mils Code 39: up to 60.0 cm / up to 23.6 in

SAFETY & REGULATORY

Agency Approvals

The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifcations.

Environmental Compliance

Complies to China RoHS; Complies to EU RoHS

Laser Classifcation

Caution Laser Radiation - Do not stare into beam IEC 60825 Class 2

Operating System Support

Windows; Linux, Android

Tools

DESP Demonstration & Confguration Utility; Datalogic Aladdin

WARRANTY

Warranty

3-Year Factory Warranty
